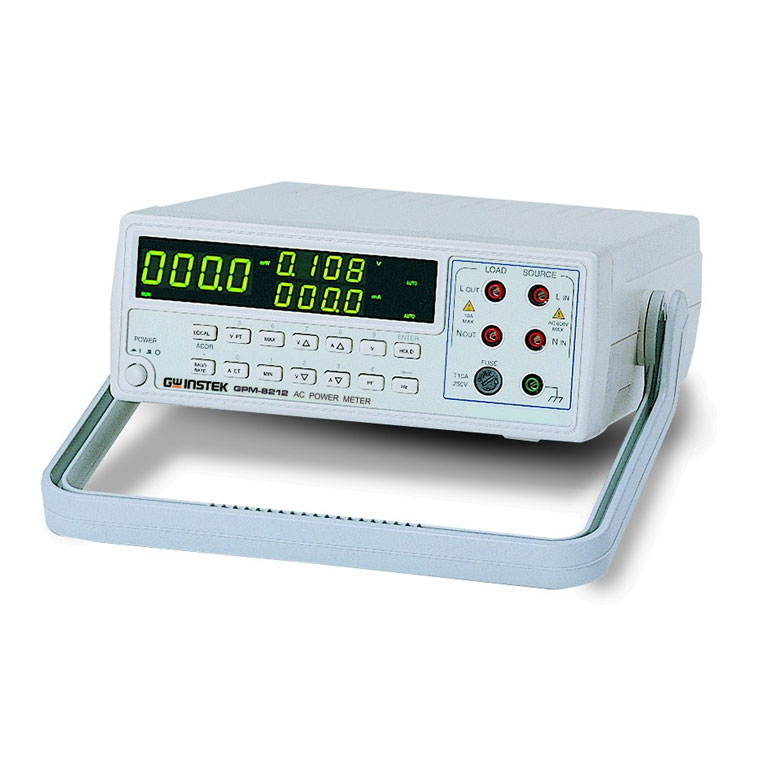

A.C. Power Meter (Bench-Top)– True RMS V, A, W.
The GPM-8212 is a bench-top power meter suitable for middle- to high-end application. Performance and functionality are maintained at the highest level as in maximum 9999 CT/PT ratio, high immunity to external noise, and true RMS voltage/current/power. Extra attention is paid to simplify setup and operation. The large 0.56″ display shows all three units, Wattage/Voltage/Current, either in PF or Hz, simultaneously. PC connection through RS-232C or RS-485 interface adds automatic calibration feature providing minimum error factor and data/control interface for automated test systems.
Features
- Simultaneous Display of W, A, V ( PF or Hz )
- True RMS V, A, W
- Auto Calibration Via Computer
- Max. / Min. / Hold Function
- High Immunity to External Noise
- CT Ratio (1 ~ 9999)
- PT Ratio (1 ~ 9999)
