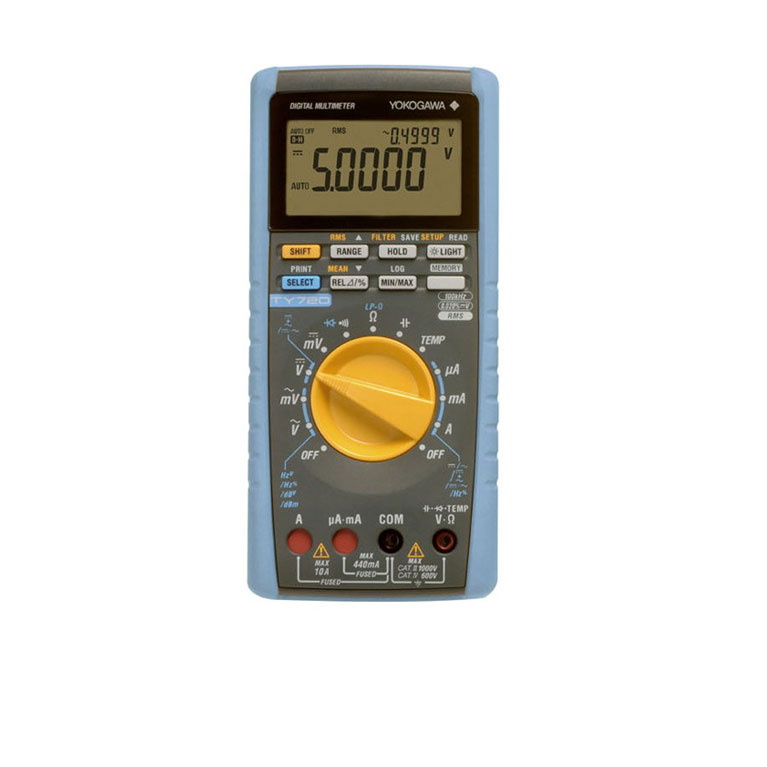

The TY720 Digital Multimeter is a 4.5-digit, 50,000-count dual display RMS meter with a 51-segment bar graph display. The TY720 multimeter measures Voltage, Current, Resistance, Continuity Check, Diode Test, Frequency, Capacitance, Temperature, and Low Power Resistance.
| Measurement Function | DC voltage, AC voltage, DCV+ACV, DC current, AC current, DCA+ACA, resistance, frequency, temperature, capacitance, duty cycle, decibel calculation, continuity check, diode test, low-power resistance For AC voltage/current, RMS/MEAN detection can be switched . For AC voltage/current, the low-pass filter can be turned on/off. |
|---|---|
| Additional Functions | Data hold/auto hold/peak hold, range hold, maximum/minimum/average values resistance, capacitance zero, relative and percentage value calculation, manual-mode memory, logging-mode memory, auto power off, backlight (white LED) |
| Display | 5-digit LCD: 7-segment Digital display: Main display; [50,000] counts Sub-display; [50,000] counts Bar graph display: 51-segment Polarity indicator: “-” appears automatically when the polarity is negative Overrange indicator: “OL” |
| Features |
|
